Description

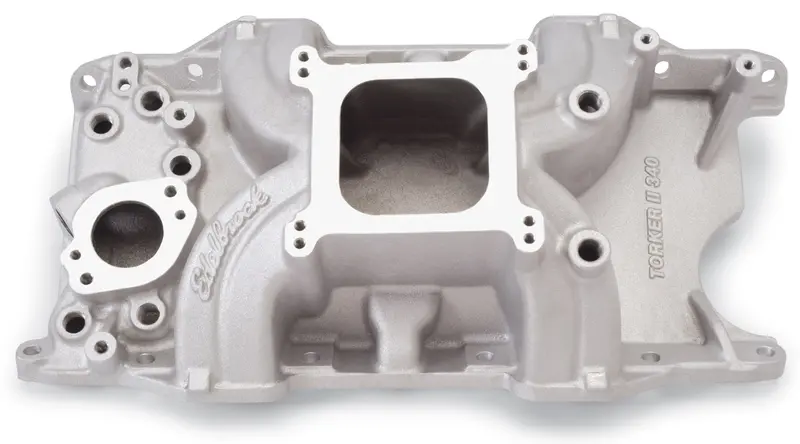

Edelbrock part #5076 Torker II intake manifold is designed for high Performance’s street 340-360 c.i.d. Chrysler V8’s. Manifold not equipped with EGR. Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Will not fit 1992 and later Magnum engines. Not for heavy vehicles (trucks, vans etc.); use Performer #2176 intake manifold.
Installation Instructions
Specifications:
| Basic Operating RPM Range | 2500-6500 |
| Center Maximum Height | 5.720 |
| CNC Ported | No |
| Color | Satin |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Small-Block:318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Torker II Intake Manifold for 318-360 Chrysler Small Block LA engines |
| Description_FAB | 2500 to 6500 RPM High Performance Street Engines |
| Description_FAB | Can be Used on 318 cid if 340/360 Heads Used |
| Description_FAB | For Top-End HP and Adequate Throttle Response |
| Description_FAB | Ideal for Applications with Limited Hood Clearance |
| Description_FAB | Not for Mileage or Emissions Applications |
| Description_FAB | Single-Plane Low-Rise Intake is Good for High RPMs |
| Description_INV | Torker 2 Chrysler 360 Intake Manifold |
| Description_KEY | 5076; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Torker II; Torker 2; Satin |
| Description_LAB | Torker II 340/360 Small Block Chrysler Intake Manifold |
| Description_MKT | Edelbrock part #5076 Torker II intake manifold is designed for high Performance’s street 340-360 c.i.d. Chrysler V8’s. Manifold not equipped with EGR. Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Will not fit 1992 and later Magnum engines. Not for heavy vehicles (trucks, vans etc.) |
| Description_MKT | Edelbrock part #5076 Torker II intake manifold is designed for high Performance’s street 340-360 c.i.d. Chrysler V8’s. Manifold not equipped with EGR. Can be used on 318 c.i.d. if 340-360 c.i.d. cylinder heads are used. Will not fit 1992 and later Magnum engines. Not for heavy vehicles (trucks, vans etc.); use Performer #2176 intake manifold. |
| Description_MKT | use Performer #2176 intake manifold. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 5.72″ |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 600-800cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-5.25″, B-6.19″ |
| Description_TRA | Port exit dimensions: 1.00″ x 2.17″ |
| Description_TRA | Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213, Chrysler #4397642 (or equivalent) |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7276; Fel-Pro #1213; Chrysler #4397642 (or equivalent) • Manifold height: A-5.25in.; B-6.19in. • Carb pad height: 5.72in. • Carb recommendations: Edelbrock AVS2 or Performer Series 600-800cfm. Use # 1481 or # 1843 throttle/transmission lever kit. • Port exit dimensions: 1.00in. x 2.17in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Flange Type | 4150 |
| Front Maximum Height | 5.250 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.720 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Torker/Torker II |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chrysler |
| weight | 20.25 |
| width | 14.75 |
